Pro Flex Ro And Nf Compact Reverse Osmosis System Advanced
Product Details:
Place of Origin: | China |
Brand Name: | Fenigal/OEM |
Certification: | CE/NSF etc. |
Model Number: | SRO-R/N-1M~2M mega-million GPD |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 Set |
---|---|
Price: | Negotiable |
Packaging Details: | Standard Export Wood Crate/Carton or Naked wrapped by film |
Delivery Time: | 15~30 days |
Payment Terms: | T/T, Western Union, Paypal etc. |
Supply Ability: | 50 set per month |
Detail Information |
|||
Design: | Skid Mount | Feed TDS/ppm: | <2,000 |
---|---|---|---|
Permeate Flow/TPD: | 5~75 | TSS/mg/L: | <5 |
Application: | Water Purification,drinking Water,food,car Washing | Capacity: | 0.5-100m3/h |
Silt Density Index: | <3 | Free Chlorine Mg/L: | 0 |
Warranty: | 12 Months | Material: | SS304/SS316L,carbon Steel |
Dissolved Iron Mg/L: | <0.1 | Size: | Depends,1750*550*1650mm |
Pump: | CNP / Grundfos,CNP | Function: | Water Purifying, Desalination |
Control: | Electronic,Manual/PLC | Water Temp.: | 3~32˚C |
High Light: | ro compact reverse osmosis system,nf compact reverse osmosis system,compact reverse osmosis system advanced |
Product Description
Pro Flex Ro And Nf Compact Reverse Osmosis System Advanced

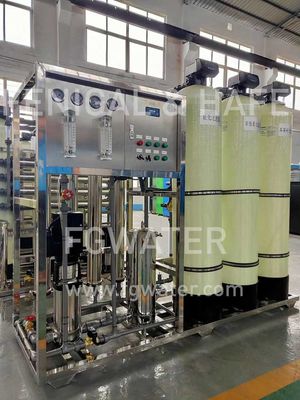

Pro Flex RO & NF Systems Advanced Reverse Osmosis Water Treatment System
Reverse osmosis systems are designed and manufactured for commercial and industrial applications. These systems have been engineered for capacities ranging from 1,200-20,000gpd for low TDS feed water design (Feed water TDS<1,500ppm).
RO water filter system 0.25tph SRO-N series 9000gpd
Small size RO system with 4" membranes | |||||
SRO-N series | Capacity | Power rate (50HZ) | RO membrane | width*depth*height | |
feed water TDS<1500ppm | (1-6 pcs) | mm | |||
SRO-N-1500 | 1500gpd | 0.25m3/h | 1.5kw | 4040 | 700*650*1650 |
SRO-N-3000 | 3000gpd | 0.50m3/h | 1.5kw | 4040 | 700*650*1650 |
SRO-N-4500 | 4500gpd | 0.75m3/h | 1.5kw | 4040 | 700*650*1650 |
SRO-N-6000 | 6000gpd | 1.00m3/h | 1.5kw | 4040 | 700*650*1650 |
SRO-N-9000 | 9000gpd | 1.50m3/h | 2.2kw | 4040 | 700*650*1650 |
RO water filter system 0.25tph SRO-R series 9000gpd |
|||||
SRO-R series | Capacity | Power rate (50HZ) | RO membrane | width*depth*height | |
feed water TDS<1500ppm | (1-6 pcs) | mm | |||
SRO-R-6000 | 6000gpd | 1.00m3/h | 1.5kw | 4040 | 700*1650*1350 |
SRO-R-9000 | 9000gpd | 1.50m3/h | 2.2kw | 4040 | 700*1650*1350 |
SRO-R-12000 | 12000gpd | 2.00m3/h | 3.0kw | 4040 | 850*2350*1350 |
SRO-R-15000 | 15000gpd | 2.50m3/h | 3.0kw | 4040 | 850*2350*1350 |
SRO-R-18000 | 18000gpd | 3.00m3/h | 3.0kw | 4040 | 850*2350*1350 |

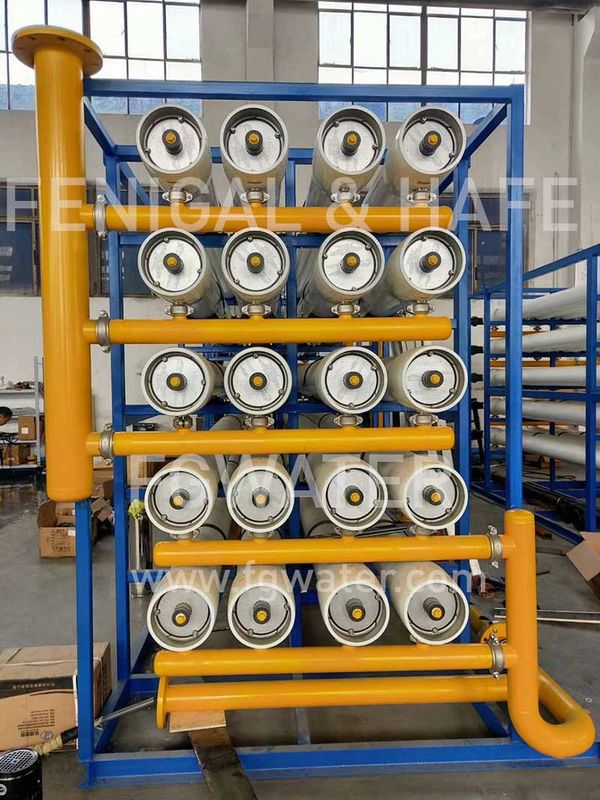

- Membrane element and pressure vessel
- Membrane model---LP21-4040
- Membrane manufacturer---Vontron/DOW/Hydronautics/Others
- Pressure vessel spec.---FRP, 300PSI, end port
- Pressure vessel manufacturer---ROPV/Wave Cyber/First Line/Others
- Cartridge Filtration
- Housing---4.5’’*20’’
- Filter cartridge---4.5’’*20’’, 5micron
- Quantity--- 1 pc
- Benefits
- Fully equipped and customizable
- Components easily accessible
- Low operation and maintenance costs
- 1-Year limited warranty
- Military,
- Hospital,
- Food and beverage,
- Pharmaceutical, Mining,
- Power and energy,
- Refinery,
- Restaurants,
- Schools,
- Agriculture,
Designed to produce low dissolved solids water from non-polluted surface or well water, these systems use high efficiency reverse osmosis membranes. The product water is used in applications such as semiconductor, boiler feed, pharmaceutical, municipal, water reuse, food processing, bottling, and a wide variety of other applications.
