IDAF Industrial Water Clarifier , 150000L/H Dissolved Air Flotation Equipment
Product Details:
Place of Origin: | China |
Brand Name: | Fenigal/OEM |
Certification: | CE/ISO etc. |
Model Number: | IDAF |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 Set |
---|---|
Price: | Negotiable |
Packaging Details: | Standard Export Wood Crate/Carton or Naked wrapped by film/Containerized |
Delivery Time: | 15~30 days |
Payment Terms: | T/T, Western Union, Paypal etc. |
Supply Ability: | 200 set per month |
Detail Information |
|||
Material: | Stainless Steel & Cabon Steel, Carbon Steel Or Stainless Steel | Size: | 2.9*1.16*1.7~14.1*4.8*2.7 |
---|---|---|---|
Operation: | Automatic Running | Core Components: | Pressure Vessel, Pump, Engine, Motor, PLC |
Weight: | 1500kg-10000kg | Capacity: | 150000L/Hour |
High Light: | 150000L/H Industrial Water Clarifier,IDAF Industrial Water Clarifier,ISO Dissolved Air Flotation Equipment |
Product Description
IDAF Industrial Water Clarifier , 150000L/H Dissolved Air Flotation Equipment

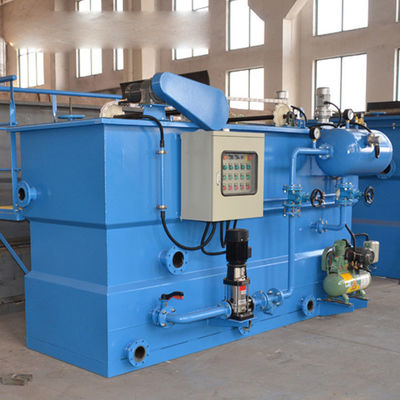

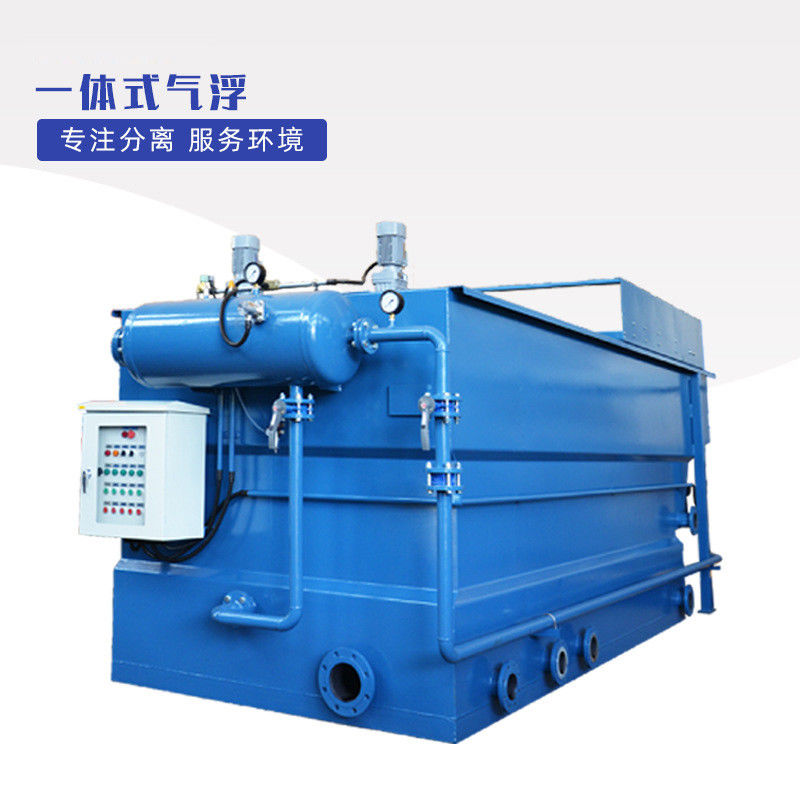

Integrated Dissolved Air Floatation (IDAF) with Micro bubbles generator for wastewater treatment
Integrated DAF system is a total solution combined chemical reaction device and DAF for customer with Jorsun’s attention. It is made up of DAF and chemical reaction device (Mechanical or pipe) and the objective is to provide total solution according to customer’s requirements project characteristics .
Integrated DAF system
Equipped with chemical reaction tank.
Smaller footprint
Characteristics and advantages:
- Perfect combination of chemical reaction device and DAF system.
- Compact structure, intensive and systematic.
- Customized design and manufacture according to the technological requirements.
Model | Capacity | Power(kw) | Dimension(m) | Nozzle list(DN) | ||||||||
(m^3/h) | Recirlation pump | Air compressor | Skimmer |
Coagulation mixer |
Flocclation mixer | L/L1 | W/W1 | H/H1 | Inlet | Outlet | Sludge scraper | |
IDAF-002 | ~2 | 0.75 | 0.55 | 0.2 | 0.37 | 0.25 | 3.8/2.9 | 2.4/1.16 | 2.1/1.7 | 50 | 50 | 80 |
IDAF-003 | ~3 | 0.75 | 0.55 | 0.2 | 0.37 | 0.25 | 4.1/3.2 | 2.4/1.16 | 2.1/1.7 | 50 | 50 | 100 |
IDAF-005 | ~5 | 1.1 | 0.55 | 0.2 | 0.37 | 0.25 | 4.4/3.5 | 2.4/1.16 | 2.1/1.7 | 80 | 80 | 100 |
IDAF-010 | ~10 | 1.5 | 0.55 | 0.2 | 0.37 | 0.25 | 5.0/3.9 | 2.92/1.66 | 2.3/1.9 | 100 | 100 | 100 |
IDAF-015 | ~15 | 2.2 | 0.75 | 0.2 | 0.37 | 0.25 | 6.1/5.0 | 2.92/1.66 | 2.3/1.9 | 100 | 100 | 100 |
IDAF-020 | ~20 | 3.0/5.5 | 0.75 | 0.2 | 0.37 | 0.25 | 6.2/5.1 | 3.1/2.16 | 2.3/1.9 | 150 | 100 | 100 |
IDAF-030 | ~30 | 3.0/5.5 | 0.75 | 0.2 | 0.37 | 0.25 | 7.7/6.6 | 3.1/2.16 | 2.3/2.0 | 150 | 150 | 150 |
IDAF-040 | ~40 | 3.0/5.5 | 0.75 | 0.2 | 0.75 | 0.37 | 7.9/6.7 | 3.6/2.7 | 2.7/2.3 | 200 | 150 | 150 |
IDAF-050 | ~50 | 7.5 | 1.5 | 0.2 | 0.75 | 0.37 | 9.0/7.8 | 3.6/2.7 | 2.7/2.3 | 200 | 150 | 150 |
IDAF-060 | ~60 | 7.5 | 1.5 | 0.2 | 0.75 | 0.37 | 9.3/8.1 | 4.0/3.0 | 2.7/2.3 | 250 | 200 | 150 |
IDAF-070 | ~70 | 11 | 1.5 | 0.2 | 0.75 | 0.37 | 11.1/9.9 | 4.0/3.0 | 2.7/2.3 | 250 | 200 | 150 |
IDAF-080 | ~80 | 11 | 1.5 | 0.2 | 1.5 | 0.37 | 11.7/10.4 | 4.0/3.0 | 2.7/2.3 | 250 | 200 | 150 |
IDAF-100 | ~100 | 15 | 2.2 | 0.2 | 1.5 | 0.37 | 12.9/11.8 | 4.4/3.4 | 2.7/2.3 | 300 | 250 | 150 |
IDAF-120 | ~120 | 15 | 2.2 | 0.2 | 1.5 | 0.37 | 13.9/12.8 | 4.4/3.4 | 2.7/2.3 | 300 | 250 | 150 |
IDAF-150 | ~150 | 18.5 | 2.2 | 0.2 | 1.5 | 0.37 | 14.1/13.0 | 4.4/3.8 | 2.7/2.3 | 350 | 300 | 150 |
