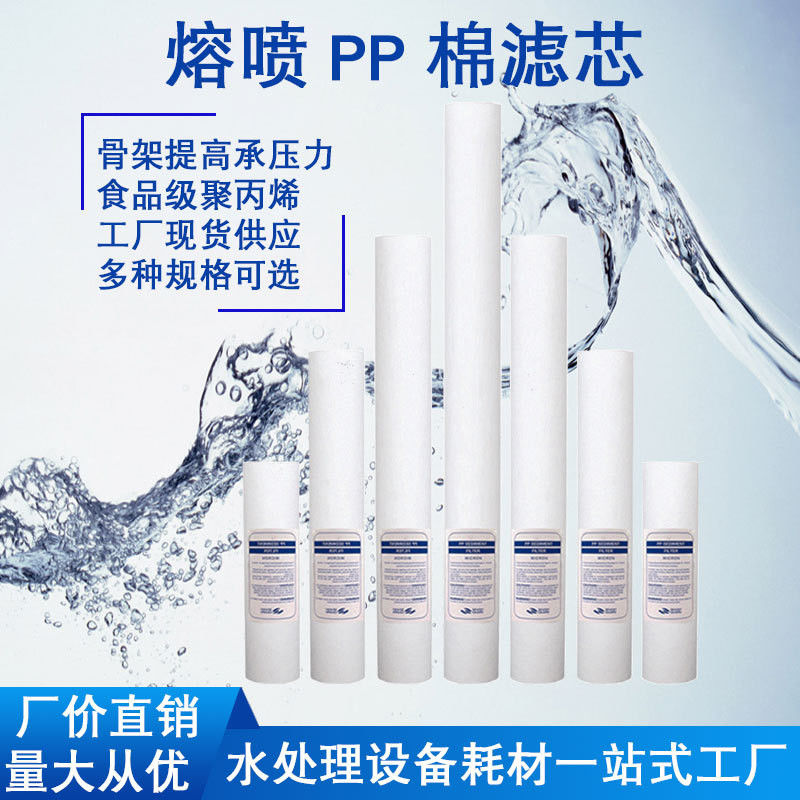

120um Water Treatment Consumables , Spun Polypropylene Sediment Filter Cartridges
Product Details:
| Place of Origin: | China |
| Brand Name: | Fenigal/OEM |
| Certification: | CE/NSF etc. |
| Model Number: | WTC-14 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 bag |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Export PP Bag |
| Delivery Time: | 15~30 days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 10,000 bags per month |
|
Detail Information |
|||
| Filter Fineness: | 0.5 – 120 µm | Length: | 5”– 70” |
|---|---|---|---|
| Connections: | DOE And O-ring Adapter | Outer Diameter: | 60/62/64 Mm |
| Inner Diameter: | 27/28/29 Mm | Fiber Material: | Polypropylene/Polyester/Nylon |
| High Light: | 120um sediment filter cartridges,40" sediment filter cartridges,120um Water Treatment Consumables |
||
Product Description
120um Water Treatment Consumables , Spun Polypropylene Sediment Filter Cartridges

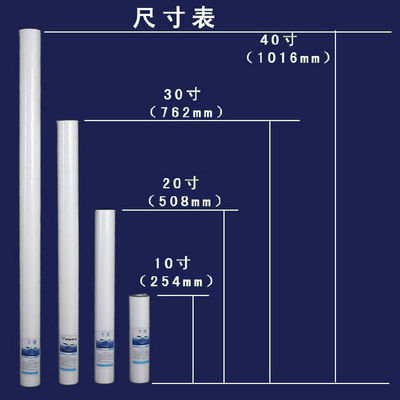

Spun Polypropylene Sediment Filter Cartridges dia.2.5" x L10"~40" 0.5 – 120 µm

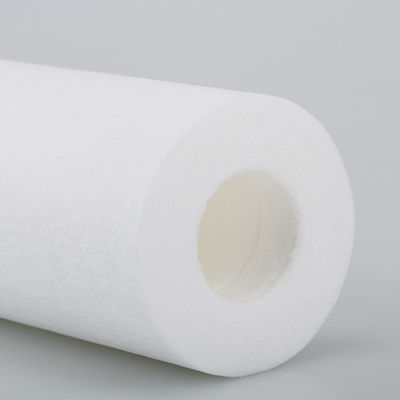

Spun polypropylene sediment filters are constructed of multi-layers for superior depth filtration. The graded density construction captures particles throughout the entire cross section of the cartridge and reduces surface binding. The cartridges combine quality and cost effectiveness to provide excellent filtration value. Available in a variety of micron ratings and sizes. Pure Aqua’s spun polypropylene sediment filters meet NSF standards.
Spun filter cartridge also called pp spun filter cartridge, spun polypropylene filter cartridge, spun water filter cartridge, spun sediment filter, is a depth-filter cartridge with a 100% high purity polypropylene filter media. It has long on-stream life and broad chemical compatibility with or without thermally bonded end caps.
Spun filter cartridges are widely used as a pre-filter or final filter for industrial, such as spun filters for ro, pp spun filters for process water & groundwater remediation, poly spun filter cartridges for chemical process, pharmaceutical, food/beverage, cosmetics and other applications. You can import our spun filter cartridges range from 0.5 to 120 microns with lengths from 5″ to 70″.
|
Applications |
- Ideal for removing rust particles, scale, sludge and sediment. - Useful for removing deformable and non-deformable particles - HVAC closed loop and cooling tower water filtration - Food & beverage - Filtration of feed water and protection of RO and UF membranes - UV prefiltration to increase effectiveness of UV light - High efficiency machine coolant filtration - Potable Water filtration - Filtration of process / wastewater / DI Water - Filtration of paints & Inks - Filtration of plating solutions - Acid filtration - Filtration of cosmetics and personal hygiene product |
|---|---|
|
Material |
Polypropylene |
|
O-ring materials |
Silicone, Fluorcarbone, EPR, Nitrile and FEP |
|
Max. operating temperature |
80°C |
|
Cartridge lengths |
9 7/8", 10", 19 1/2", 20", 29 1/4", 30", 39", 40" |
|
Absolute removal |
(99,9%) 1, 3, 5, 10, 25, 50, 75 and 100 µm |
| Material | Polypropylene |
| Length | 9-7/8” - 40” |
| Maximum temperature | 60°C / 140°F |
| Micron rating (nominal) | 1 - 50 |
| Maximum flow rate | 2 - 28 gpm (2.5” diameter) 10 - 30 gpm (4.5” diameter) |
| Cartridge packaging | Shrink wrapped |
2.5” DIAMETER
| Part Number | Micron | Length | Case Qty |
| PA-101 | 1 | 9-7/8” | 50 |
| PA-201 | 1 | 20" | 25 |
| PA-301 | 1 | 30" | 25 |
| PA-401 | 1 | 40" | 25 |
| PA-105 | 5 | 9-7/8” | 50 |
| PA-205 | 5 | 20" | 25 |
| PA-305 | 5 | 30" | 25 |
| PA-405 | 5 | 40" | 25 |
| PA-1025 | 25 | 9-7/8” | 50 |
| PA-2025 | 25 | 20" | 25 |
| PA-1050 | 50 | 9-7/8” | 50 |
Features of Spun Filter Cartridge
- 100% polypropylene filtration media for superior purity
- Various endcap choices available to fit standard filter cartridge housings
- Superior inner-layer bonding eliminates containment, unloading, and bypass
- Optimal graded density superior for high filtration efficiency
- Larger diameter makes it operate at higher velocities.
- No surfactants, binders or adhesives used in the production
- Fewer filter change-out to decrease labor and filter disposal costs
- Larger particle retention with increasing differential pressure
- Long service life, cost-effective filtration
Applications of Spun Filter Cartridge
- Potable Water Filtration
- Food and Beverages
- DI Water Filtration
- Plating Solution Filtration
- R.O. Pre-filtration
- Membrane Pre-filtration
- Organic Solvent Filtration
- Chemical Processing
- Photographic Filtration
- Paper coatings
