R8040-1000PSI Membrane Housing Fully Adaptable To Special Media Environments

R8040-1000PSI Membrane Housing-Fully Adaptable To Special Media Environments

RO (Reverse Osmosis) Membrane FRP Pressure Vessels

Engineered specifically for demanding reverse osmosis applications, FRP (Fiber Reinforced Polymer) pressure vessels provide the critical pressurized environment required for efficient membrane filtration. These cylindrical composite structures house spiral-wound membrane elements while withstanding continuous operating pressures up to 1,000 psi.

Unlike traditional metal vessels, FRP construction offers inherent corrosion resistance against seawater, brackish water, and chemical cleaning agents. The multi-layer filament winding process creates a seamless, high-strength composite wall with exceptional hoop strength and axial stability. This eliminates rust, electrolytic corrosion, and delamination risks – extending service life beyond 25 years with minimal maintenance.

Key performance advantages include a 60% weight reduction versus steel alternatives for easier installation, NSF/ANSI 61-certified food-grade inner surfaces to prevent fluid contamination, and UV-stabilized exteriors for outdoor durability. Precision-engineered end caps with anti-telescoping protection safeguard membrane elements during pressure fluctuations.

Manufactured through computer-controlled winding technology and infrared curing processes, these vessels deliver consistent dimensional accuracy (±0.2mm) and void-free structural integrity. Every unit undergoes rigorous hydrostatic testing at 150% operating pressure and full dimensional inspection.

Ideal for seawater desalination plants, pharmaceutical water systems, industrial wastewater recycling, and microelectronics ultrapure water production, FRP pressure vessels reduce lifecycle costs by 30% compared to metal alternatives while ensuring zero fluid contamination and uninterrupted operation.

Their composite design represents the modern standard for reliable, maintenance-free membrane housing – transforming pressure containment from a maintenance liability into a system asset.

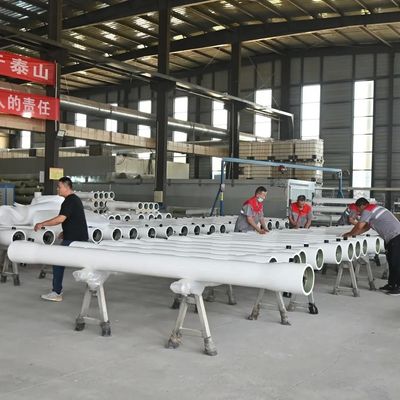

Standard Production Procedure for RO Pressure Vessels:

1. Filament Winding

2. Surface Grinding

3. Precision Turning (End Connections)

4. Designated Drilling

5. Hydrostatic Pressure Testing (Performed on every vessel):

   • Pressure increased at constant rate to 1.1× working pressure

   • Maintained for ≥180 seconds

   • Verification criteria: Zero leakage and stable pressure gauge reading

6. Protective Coating Application

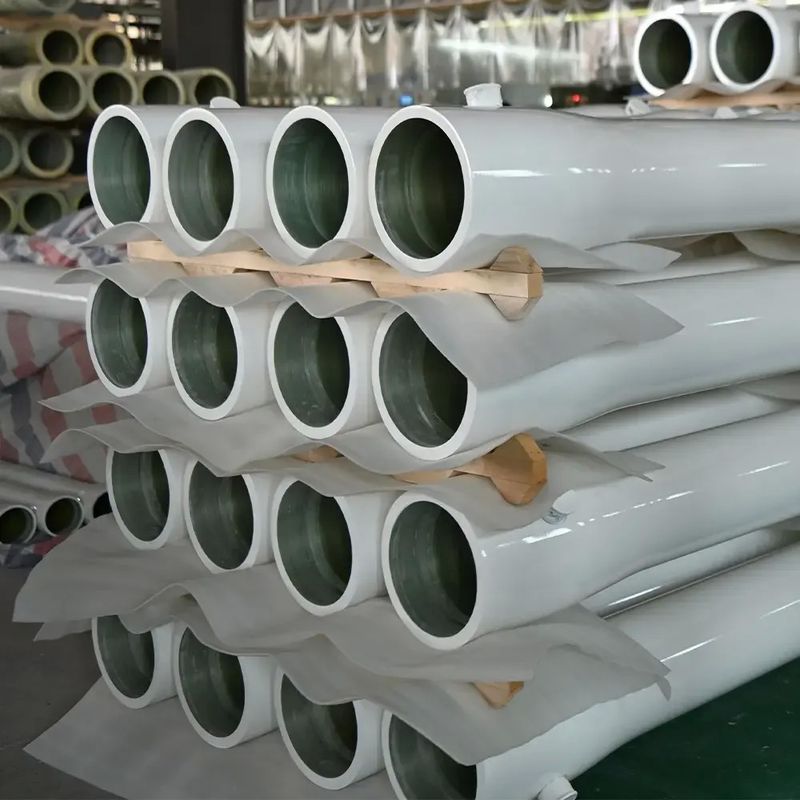

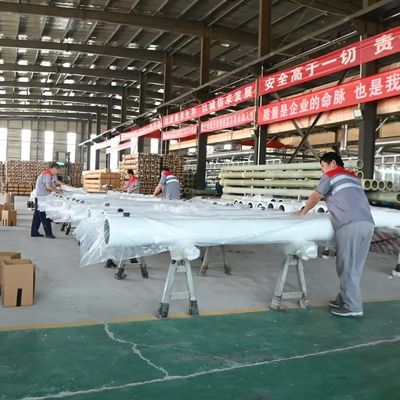

7. Packaging & Storage

Standard Inspection and Test Protocol:
Pressure vessels undergo industry-compliant quality verification with key inspections covering:

1. Raw Material Certification:

   • Fiberglass reinforcement

   • Epoxy resin matrix

   • Anhydride curing agents

2. In-Process Quality Monitoring (Critical manufacturing stages)

3. Mandatory Hydro-test per Vessel:

   • Pressurization to 110% rated pressure at controlled rate

   • 3-minute minimum hold duration

   • Pass criteria: Leak-tight integrity and pressure maintenance

4. Final Product Qualification:

   • Dimensional verification

   • Visual examination

   • Documentation review

Application Scope:
Widely implemented in:

• Electronics manufacturing, power generation, metallurgical processing

• Chemical/pharmaceutical production, food & beverage processing

• Industrial wastewater treatment and water reuse systems

• Brackish water, seawater, and desalination plants

• Specialized high-pressure liquid handling applications

Performance Characteristics:
Chemical Resistance:

• Withstands 25% sulfuric acid solutions

• Tolerates 10% hydrofluoric acid exposure

• Compatible with aggressive media: strong acids/alkalis, electroplating baths, chlor-alkali solutions, concentrates, landfill leachates

Temperature Ratings:

• Standard service: Up to 60°C

• Short-term exposure: Up to 90°C

Pressure Ratings:
Full-range coverage from 300psi (20bar) to 1500psi (103bar), including:
300psi, 450psi, 600psi, 800psi, 1000psi, 1200psi, 1500psi

R8040-300PSI

Main installation dimensions

R8040-450PSI

Main installation dimensions

R8040-600PSI

Main installation dimensions

R8040-1000PSI

Main installation dimensions

R4040 End Entry membrane housing

Product Selection

1,Connection type:4040 End Por

2. Pressure type: 300, 450, 600, 800, 1000PSI

3. Length type: 1 to 4 cores;

4. Appearance color: Standard configuration is white, can be customized according to customer requirements:

5. Special specifications can be customized.

Technical Requirements

1,The manufacturing method of our FRP pressure vessel (membrane housing)is in accordance with the standard JC692-1998;

2,Design for the pressure of the FRP pressure vessel (membrane housing) is 300,450,600,800,1000PSl,and the permitted scope of working temperatureis-17℃-49℃;

3.The permeability test of the membrane housing with a way of using water pressure.The test pressure is 1.5 times of the standard pressure.

Main installation dimensions
