20TPH Quartz Sand Filter For Water Treatment Plant

20TPH Quartz Sand Filter For Water Treatment Plant

Product Details:

Place of Origin: China
Brand Name: Fenigal/OEM
Certification: CE/UL/NSF etc.
Model Number: MFS-YL

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Standard Export Wood Crate/Carton or Naked wrapped by film/Containerized
Delivery Time: 15~30 days
Payment Terms: T/T, Western Union, Paypal etc.
Supply Ability: 200 set per month
Get Best Price Contact Now

Detail Information

Technology: Pressurized Filtration - Adsorption Material: Carbon Steel/FRP
Design: Skid Mount/containerized Water Temp.: 5~35˚C
Voltage: 380V,415V,220V,can Be Customized Application: Surface, Underground Water, Sewage Water Treatment
Size: Dia.50cm~300cm Control: Electronic,Manual/PLC
High Light:

20TPH Quartz Sand Filter

,

FRP Quartz Sand Filter

,

20TPH multimedia sand filter

Product Description

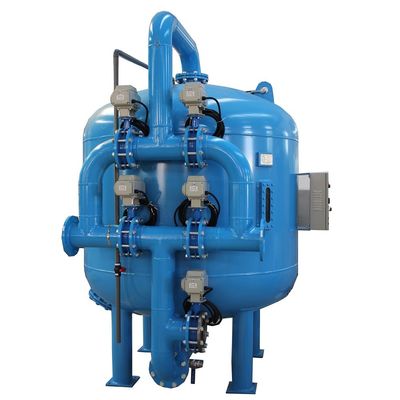

20TPH Quartz Sand Filter For Water Treatment Plant

Mechanical FRP/Carbon Steel 20T/H Quartz Sand Filter for Water Treatment Plant

Quartz sand filter. It is a pressure filter, the filter is filled using the refined quartz sand, from top to bottom when the water flows through the filter layer, suspended solids and pectin particles are removed, so that the water is turbid decreased.



Working Principle



  • Mechanical sand filter, also known as pressure filter, is an important part of the water pretreatment and water purification systerms. Mechanical sand filter packing is mainly used to reduce water turbidity, remove the water suspended particles, organic matter, colloidal particles, microorganisms, residual chlorine and some heavy metal ions.
  • The turbidity of raw water require less than 20 degrees, and it will up to 3 degrees when the filtration completed.





Mainly used in water treatment turbidity removal, softening, electrodialysis, the first stage reverse osmosis pretreatment it can also be used aspects of surface water and groundwater. Can effectively remove suspended solids, organic matter, colloid, such as silt.

It can be widely used in electronic power, petrochemical, metallurgy electroplating, paper textiles, pharmaceuticals, dialysis, food and beverages, drinking water, water for factories and enterprises, swimming pools and so on. To meet the needs of various industries liquid filtration.

This product can be divided into manual type and automatic type. Manual type is mainly controlled by the valve regulating the operation of the filter, the washing, backwashing; and automatic type is carried out through the filter head automatic operation, the washing, backwashing state control, tank material can divided glass steel cans, steel cans, stainless steel cans, can also be produced according to user requirements.



Technical details:



Used for quartz sand filters, activated carbon filters, softening filters, manganese sand filters, fluoride removal filter.



Sand Filter for Irrigation and Cleaning Water.

Complete Filtration System for Channels - Rivers- Lake and Wells.

Manual control and Flush System. Easy to operate and Durable.

Possible to start from 2 inch - 10 inch

Flow rates : 25m3/h - 900m3/h

Metal and complete system with Sand + Couplings + Disc Filter together. All necessary parts are supplied with the project.



Filter technology parameters:



Filter filtration rate: 8 ~ 300m3 / h

Flow Velocity: 8-15m/h
Backwash time: 10 to 15 minutes
Working pressure: ≤ 0.6Mpa

Water outlet: 2-5mg/L

Water inlet: <10mg/L

Water outlet: <2mg/L

Design temperature: 5 ~ 50C
Single sand filter straight Height: 1500mm
Activated carbon / cationic resin filter Height: 1000mm



Flow Rate Tank
Size
D”xH”
Media
Qty
(ft3)
Pipe
Size
Approx.
Weight
(lbs)
Minimum Average Peak Backwash
GPM M3/H GPM M3/H GPM M3/H GPM M3/H
Multi Layer Filters: Anthracite, Sand and Gravel / Silica Sand (Turbidity Removal)
2.7 0.6 4.0 0.9 5.3 1.2 4.0 0.9 7x44 0.5 3/4" 75
3.5 0.8 5.4 1.2 7.0 1.6 5.4 1.2 8x44 0.75 3/4" 95
4.4 1.0 6.6 1.5 8.8 2.0 6.6 1.5 9x48 1 3/4" 118
5.4 1.2 8.1 1.8 10.8 2.5 8.1 1.8 10x54 1.5 3/4" 156
7.8 1.8 11.7 2.7 15.6 3.5 11.7 2.7 12x52 2 1" 204
9.2 2.1 13.8 3.1 18.4 4.2 13.8 3.2 13x54 2.5 1" 267
10.7 2.4 16.1 3.6 21.4 4.9 16.1 3.6 14x65 3.5 1-1/2" 366
13.9 3.2 20.9 4.8 27.8 6.3 20.9 4.8 16x65 4.5 1-1/2" 462
17.7 4.0 26.6 6.0 35.4 8.0 26.6 6.0 18x65 5.5 1-1/2" 577
24.1 5.5 36.2 8.3 48.2 11.0 36.2 8.3 21x62 7.5 1-1/2" 761
31.4 7.1 47.1 10.7 62.8 14.3 47.1 10.7 24x72 10 1-1/2" 981
49.1 11.2 73.7 16.8 98.2 22.3 73.7 16.8 30x72 15 2" 1,544
70.7 16.1 106.1 24.2 116.2 26.4 106.1 24.2 36x72 21 2" 1,900
96.2 22.0 116.2 26.4 125.0 28.4 125.0 28.4 42x72 28 2" 2,400



Using scope for Sand Filter Machine



1. Thermal power, nuclear power plant industrial, central air conditioning system cooling water.
2. Electronic industry
3. Biological, chemical and pharmaceutical, cosmetics for the production of cooling water
4. Hospitals, various laboratory and high levels of pathogenic body water disinfection
5. Sea water, fresh water breeding, aquaculture water
6. Agricultural water disinfection
7. Food processing industry, including juices, milk, drinks, beer, practical oil and canned food
8. Purification and disinfection of shellfish, fish cleaning and disinfection
9. Military camp, field water supply system
10. Urban wastewater disinfection
11. Households building, residential, office buildings, hotels, restaurants, water factories

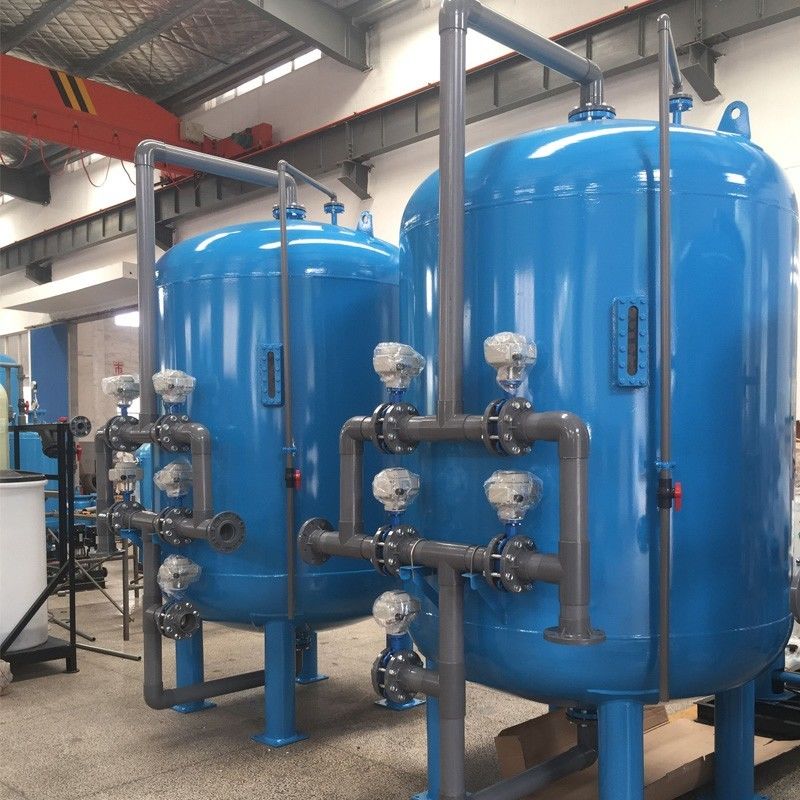

20TPH Quartz Sand Filter For Water Treatment Plant 0

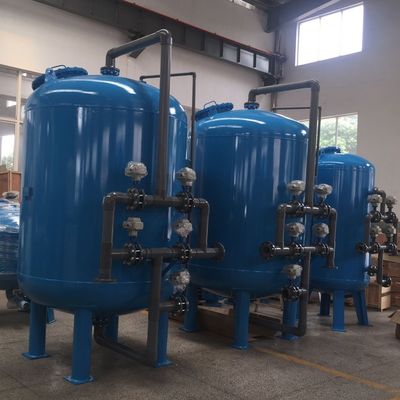

20TPH Quartz Sand Filter For Water Treatment Plant 1

Using scope for Sand Filter Machine

1. Chemical: Resin powder, palette, washing powder, paint, soda and citric acid, etc.

2. Abrasive material and ceramic industry: alumina, arnaceous quartz, slurry, and spray soil grain etc.

3. Food industry: Sugar, salt, Alkali, monosodium glutamate, milk powder, soybean milk, yeast, juice, soy sauce, vinegar etc.

4. Paper Making Industries: Coated slurry, exhaust liquid, paper making liquid and waste water reclamation, etc.

5. Metallurgy and mining: Titanium oxide, zinc oxide, electromagnetism materials, metal materials, welding rod materials, etc.

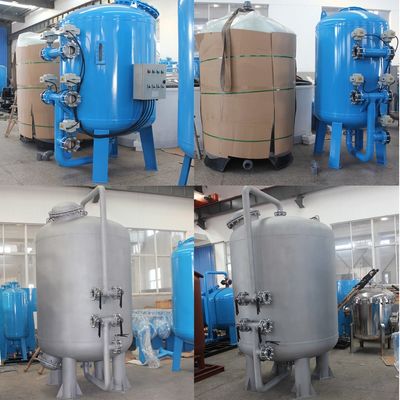

20TPH Quartz Sand Filter For Water Treatment Plant 2

Carbon Steel Sand Filter/Multimedia Filter/Pressure Filter Tank

Activated carbon filter is mainly using granular activated carbon adsorption mechanism to adsorb organic matter and residual chlorine in water , to remove the colloid, iron compound, suspended solids, reduce the chromaticity and turbidity, and ensure the follow-up of water treatment in good operation, the device has good filtering efficiency, low operating cost, easy operation, etc.

In the field of water treatment, activated carbon filter is primarily used for removing the tiny pollutants in the water, the range of application include decoloring, in addition to smell, remove all kinds of soluble organic matters.In the water purifying process,which can be used as an ion exchange and electroosmosis analysis, the reverse osmosis pretreatment, removal of organic matter, colloid and residual chlorine, etc.The activated carbon filter in our company, according to the type of control can be divided into manual type and automatic type , according to the tank material can be divided into FRP tank, carbon steel, stainless steel pot, pot wall can do polyurea corrosion or according to user requirements rubber lining anticorrosion.



The Filtering Process
Filtering with media filters, also known as depth filtration, is done by filtering water through a thick layer of graded particles, called the filter bed. These particles can be sand, gravel or other granular materials. The filtration degree depends on the effective size of the bedding and the water velocity through the filter.


Raw water enters from the filter inlet (1) and percolates through the filter bed (2). Suspended materials come into contact and attach to the media particles. Clean water flows through the filtration nozzles (3) and out of the filter via the outlet valve (4).


The gradual dirt buildup in the filter bed causes an increase in the pressure differential across the filter and when it reaches its maximum design value, a cleaning process should be performed. In automatic media filter installations a pressure differential switch senses the pressure differential and when it reaches a preset value, the self cleaning process begins


The Cleaning Process
Cleaning is done by backwashing; pressurized water flows in reverse direction – from the nozzles upwards, causing suspension of the filter bed, thus releasing the suspended matter from the bedding. The dirt particles are then washed out of the filter through the back-flush valve. In automatic media filters installations the cleaning process is done by the system's controller. When the pressure differential switch senses that the differential pressure across the system reached a pre-set value, a signal is sent to the flushing controller and the self cleaning process begins.
