2M GPD Commercial Reverse Osmosis Water Filtration System
Product Details:
| Place of Origin: | China |
| Brand Name: | Fenigal/OEM |
| Certification: | CE/NSF etc. |
| Model Number: | ROX-1~2MGD |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Export Wood Crate/Carton or Naked wrapped by film |
| Delivery Time: | 15~30 days |
| Payment Terms: | T/T, Western Union, Paypal etc. |
| Supply Ability: | 50 set per month |
|
Detail Information |
|||
| Technology: | Commercial Water Reverse Osmosis | Design: | Skid Mount |
|---|---|---|---|
| Recovery Rate: | 65~75% | Feed TDS/ppm: | <2,000 |
| Water Temp.: | 5~35˚C | PH: | 4~9 |
| TSS/mg/L: | <5 | Silt Density Index: | <3 |
| Free Chlorine Mg/L: | 0 | Dissolved Iron Mg/L: | <0.1 |
| Warranty: | 1 Year | Material: | SS304/SS316L,carbon Steel |
| Voltage: | 380V,415V,220V,can Be Customized | Application: | Water Purification,Filtration,pharmceutical,drinking Water,food |
| Size: | Depends,1750*550*1650mm | Type: | Reverse Osmosis System |
| Function: | Water Purifying, Desalination | Desalination Rate: | 99%,99.7% |
| Control: | Electronic,Manual/PLC | Ro Membrane: | Vontron, Hydranautics Or DOW,4040 |
| Pump: | CNP / Grundfos,CNP | ||
| High Light: | 2M GPD commercial reverse osmosis water filtration system,SS304 commercial reverse osmosis water filtration system,NSF commercial reverse osmosis machine |
||
Product Description

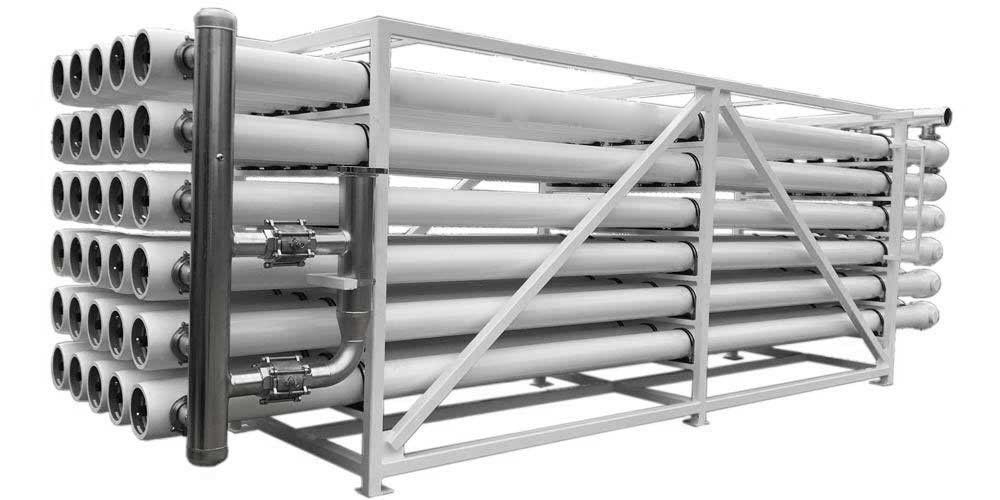

2M GPD Commercial Reverse Osmosis Water Filtration System
ROX Series Commercial Reverse Osmosis Systems 1M~2M mega-million GPD Global Application
Designed to produce low dissolved solids water from non-polluted surface or well water, these systems use high efficiency reverse osmosis membranes. The product water is used in applications such as semiconductor, boiler feed, pharmaceutical, municipal, water reuse, food processing, bottling, and a wide variety of other applications.
Operation Specifications
| Max. feed water temperature: 42°C Equipment upgrade for TDS up to 5,000 ppm Hydrogen Sulfide must be removed Max. Silica tolerance: 25 ppm @ 60% recovery |
Feed water TDS: 0-2,000 ppm Operating pressure: 150 to 250 psi pH tolerance range: 3-11 Max. Iron content: 0.05 ppm |
Feed water pressure: 20 to 80 psi Hardness over 1 GPG requires water softener Turbidity should be removed Operate at higher TDS by lowering recovery |
| Model Number | Permeate Flow Rate | Pressure Vessel | 8" Membranes | Motor Rating at 1,000 ppm | AppROXx. Weight | Dimensions | ||||
| MGPD | M3/D | Qty. | Qty. | 60Hz (hp) | 50Hz (kw) | LBS | KG | L”xW”xH” | LxWXH (cm) | |
| ROX-24680 | 1 | 3,785 | 24 | 144 | 100 | 75 | Customized | |||
| ROX-24780 | 1.25 | 4,731 | 24 | 168 | 125 | 95 | ||||
| ROX-30780 | 1.5 | 5,677 | 30 | 210 | 150 | 120 | ||||
| ROX-37780 | 2 | 7,570 | 37 | 259 | 250 | 200 | ||||
Voltage Codes:
335 = 380v, 3ph, 50hz
435 = 400/415v, 3ph, 50hz
436 = 460v, 3ph, 60hz
| Standard Features: | Available Options: |
|
8” TFC spiral wound membranes Stainless steel multi-stage pump with TEFC motor FRP membrane housings 5 micron cartridge prefilter PLC based control panel Programmable time delay and set points Motor starter Low pressure switch High pressure switch Liquid filled pressure gauges Permeate conductivity monitor Permeate & concentrate flow meters |
Remote monitoring Feed water conductivity monitor Membrane cleaning skid Automatic hourly flush Product tank level switch pH & ORP controller with sensor Water and hour meters Chemical dosing systems Media prefiltration systems Ozonation and UV sterilization Water softeners Containerized RO systems |
The ideal applications for brackish reverse osmosis systems include:
| Municipal Beverage Production and Bottled Water Electronics Mining Industry Chemical Blending |
Safe Drinking Water Rinse Water Power Plants Plating Operations Food and Beverage |
Cooling Towers Boiler Feed Water Ice Manufacturing Ion Exchange Pre-treatment |
